貼片型鋁電解電容器 MZJ系列

作者：NCC電容    發布時間：2020-08-06 15:13:52  訪問量：6469  來源：NIPPON CHEMI-CON

貼片型鋁電解電容器 MZJ系列

?Lower ESR, 2,000 to 5,000 hours at 105℃

?Rated voltage range : 6.3 to 50Vdc, Nominal capacitance range : 22 to 10,000μF

?Solvent resistant type ?Vibration resistant structure

?RoHS2 Compliant

?AEC-Q200 compliant : Please contact Chemi-Con for more details, test data, information.

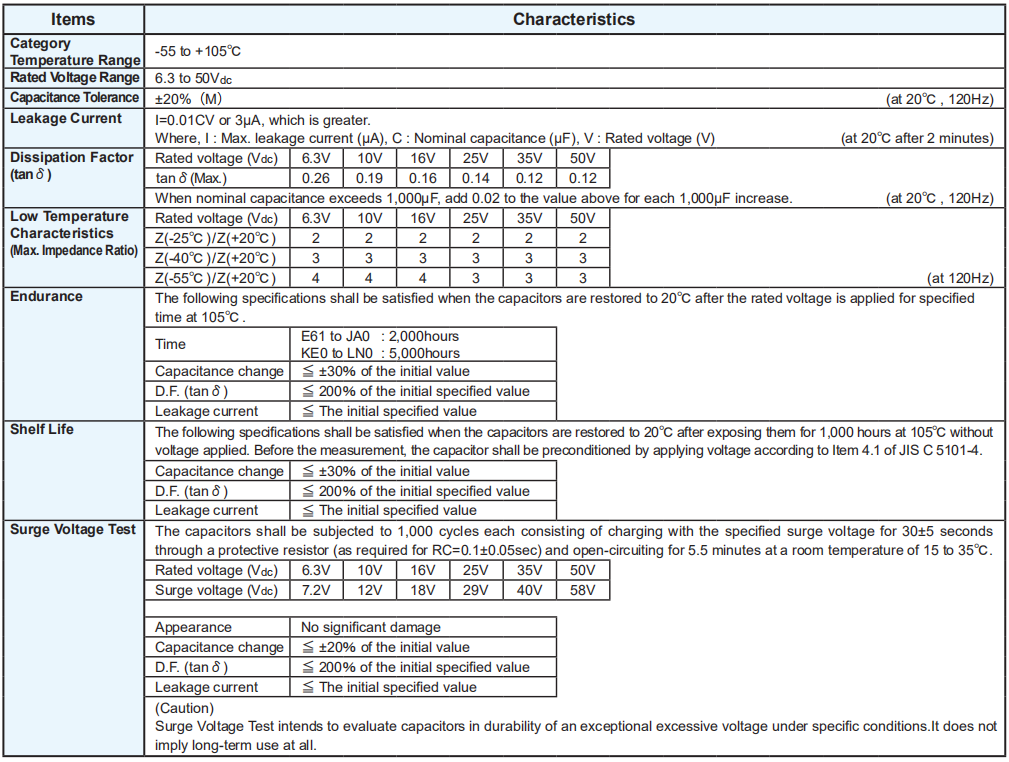

◆ SPECIFICATIONS

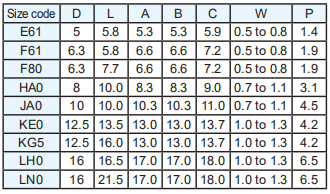

◆DIMENSIONS　［mm］

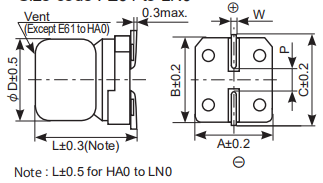

●Terminal Code : A

●Size code : E61 to LN0

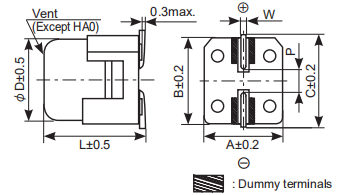

●Terminal Code : G

●Size code : HA0 to LN0

◆ MARKING

●Rated voltage symbol

Applying voltage over the rated voltages causes the capacitors to have short lifetime.

Besides, applying voltage over the specified surge voltages may cause to have short circuit failure.

 A protection circuit should be used if applied voltage will exceed the rated voltages.

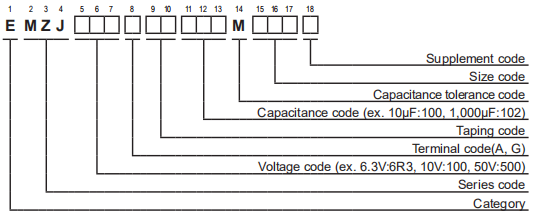

◆PART NUMBERING SYSTEM

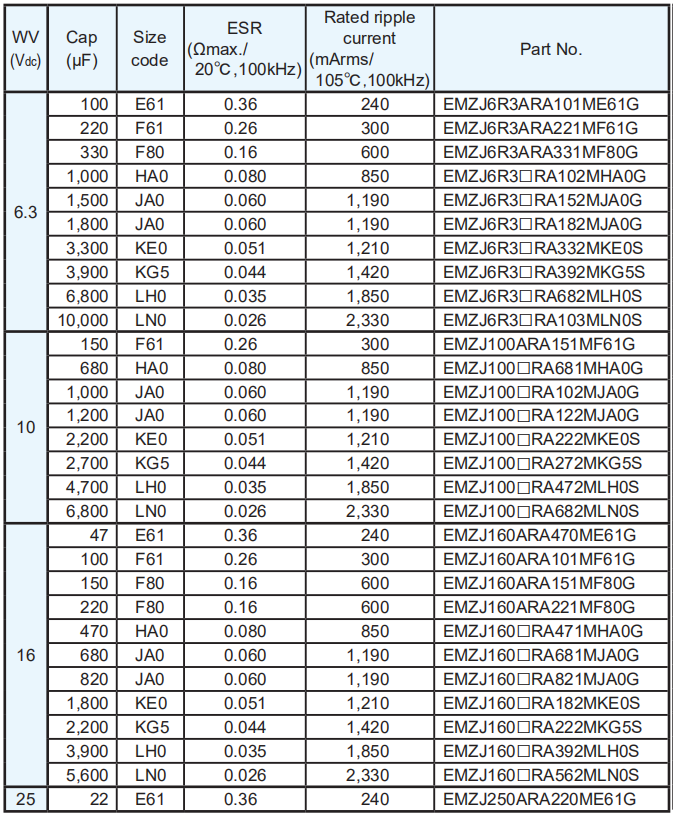

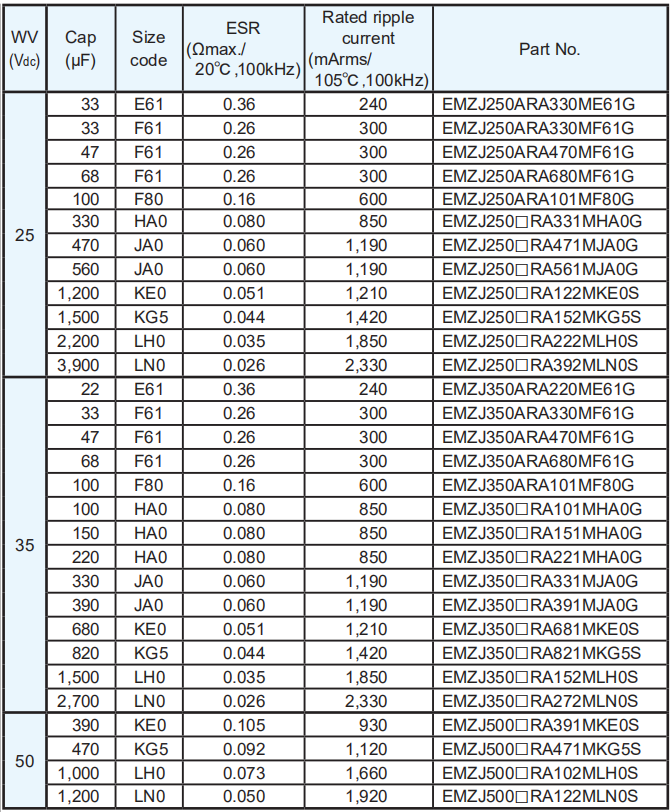

◆ STANDARD RATINGS

□ :Enter the appropriate terminal code.

◆ RATED RIPPLE CURRENT MULTIPLIERS

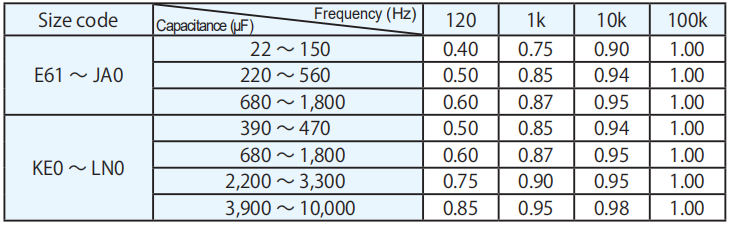

●Frequency Multipliers

The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.

When long life performance is required in actual use, the rms ripple current has to be reduced.
